Mapelastic Smart is used for waterproofing hydraulic projects such as channels, faces of dams, swimming pools, basins, storage tanks, etc. and balconies and terraces. Particularly suitable for waterproofing irregular surfaces.

Mapelastic Smart is also used to protect concrete structures, renders with hairline cracks and cementitious surfaces in general which, being subject to vibrations, may suffer from cracking.

Some application examples

• Waterproofing hydraulic channels, concrete water tanks, faces of dams and basins, including those containing potable water.

• Waterproofing bathrooms, showers, balconies, terraces, swimming pools etc. before laying ceramic tiles.

• Waterproofing plasterboard, render or cementitious surfaces, lightweight cement blocks and marine-grade plywood.

• Flexible protection layer of new concrete structures or repaired structures subject to minor deformation under load.

• Protection of cementitious renders or concrete with cracks due to shrinkage, minor movement caused by thermal gradients or dynamic stresses due to the passage of vehicles, against infiltration of water and aggressive elements from the atmosphere.

• Protection of concrete pillars and beams and road and railway viaducts repaired with products from the Mapegrout or Planitop ranges against the penetration of carbon dioxide.

• Protection of concrete surfaces which may come into contact with sea water, de-icing salts, such as sodium or calcium chloride, and sulphates.

Advantages

• High performance: a 2 mm thick film has a crack-bridging capacity of >2 mm.

• Excellent mechanical characteristics, especially when reinforced with Mapetex Sel or Mapenet 150 reinforcement.

• CE-certified product in compliance with EN 1504-2 and EN 14891.

• Excellent elongation at failure (170%, Class II AS/NZS 4858).

• Fluid consistency for easy application.

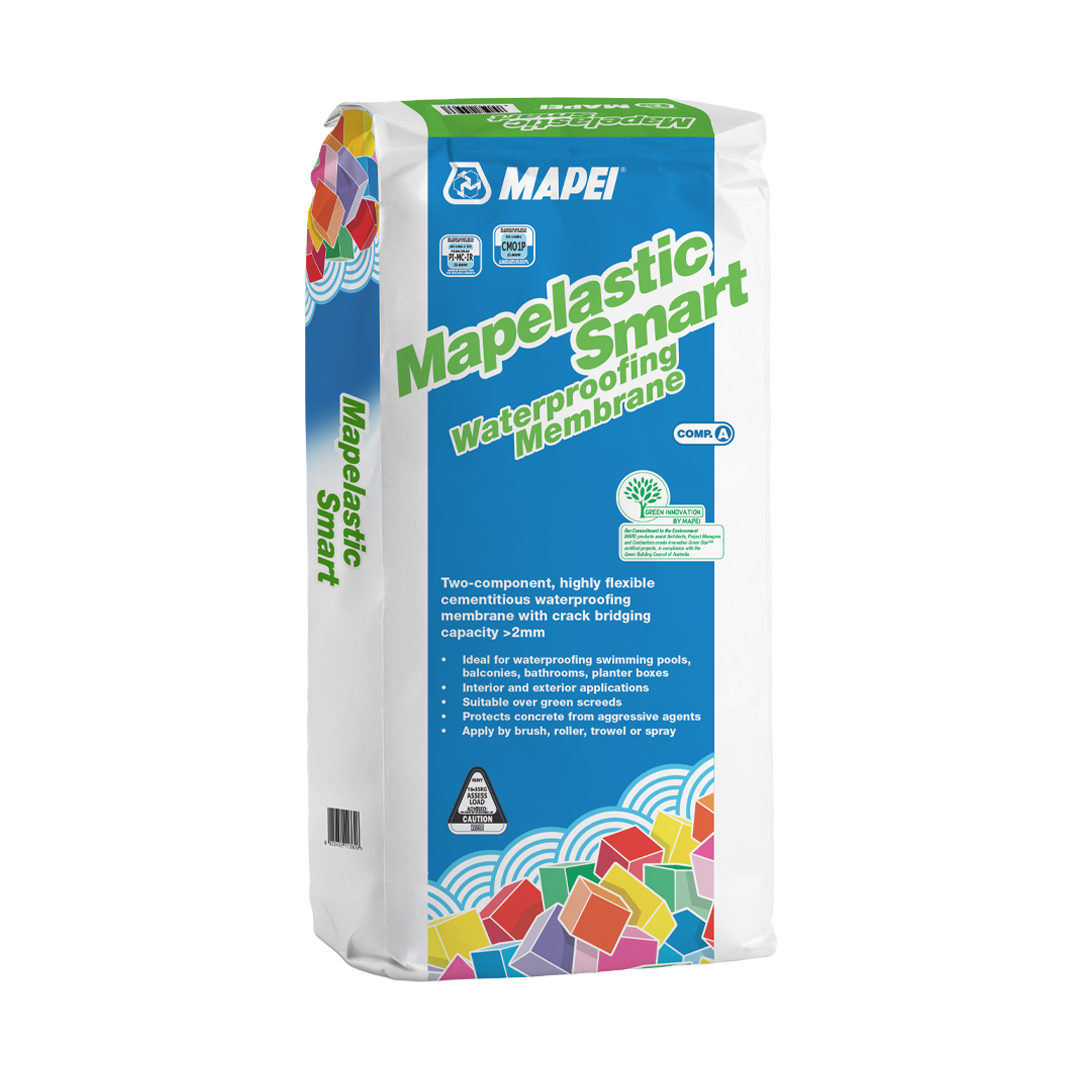

• Resistant to UV rays. MAPELASTIC SMART Two-component, high-flexibility cementitious mortar (with crack-bridging capacity up to 2 mm) applied by trowel or roller for waterproofing balconies, terraces, bathrooms and swimming pools

• May also be applied on existing tiles.

• Compatible with ceramic, mosaic and natural stone coverings using MAPEI's line of tile adhesives.

• Approved for contact with potable water. Meets the requirements of AS/NZS 4020:2018, Report ID AAD47762.

• Meets AS/NZS 4858:2004 Class II Wet Area Membrane tested by CSIRO.

• Meets the requirements of AS 4654.1:2012, exposed, non-trafficable waterproofing membrane tested by CSIRO.

• Low VOC content of 0 g/L.

• Product certified EC1 Plus by the GEV Institute (Gemeinschaft Emissions-kontrollierte).

Technical Characteristics

Mapelastic Smart is a two-component mortar based on cementitious binders, fine-grained selected aggregates, special admixtures and synthetic polymers in water dispersion, blended according to a formula developed in MAPEI’s own research laboratories.

When the two components are mixed, a blend with a plastic consistency is obtained. It may be applied by brush, by roller or by spraying with a worm screw rendering machine on both horizontal and vertical surfaces at a thickness of approximately 2 mm. Due to the content and high quality of the synthetic resins, the hardened layer of Mapelastic Smart remains constantly flexible under all environmental conditions.

Mapelastic Smart is waterproof and resistant to the penetration of aggressive substances which are present in the atmosphere, such as carbon dioxide, sulphur dioxide and sulphuric anhydride, and soluble salts such as chlorides and sulphates, which are present in seawater or in the ground.

Mapelastic Smart has excellent bonding properties on all cementitious, ceramic and marble surfaces as long as they are sound, sufficiently clean and properly prepared. These properties, together with its resistance to the deteriorating effect of UV rays, a characteristic of this product, ensure that structures protected and waterproofed with Mapelastic Smart have a long service life, even if they are located in areas with particularly rigid climatic conditions, in coastal areas with a saline-rich atmosphere or in industrial areas where the air is particularly polluted.
